General:

• Product Dimensions (W × H × D): 233.9mm×151.4mm×40.3mm
• Package Dimensions (W × H × D): 405mm×307mm×80mm
• Net Weigh: t0.560kg

Packing List:
4G LTE Router × 1
Power Adapter × 1
Detachable Antenna × 2
Ethernet Cable × 1
SIM Card Adapter × 1
Quick Start Guide × 1
Regulatory Compliance and Safety Information × 1

• Packing MethodSingle pack
• Working Temperature0 ℃ to 40 ℃ (32 ℉ to 104 ℉)
• Working Humidity10% to 90% RH non-condensing
• Storage Temperature-40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
• Storage Humidity5% to 90% RH non-condensing
• Installation ModeDesktop installation
• Max. Power Consumption≤ 9 W
• Gross Weight0.620 kg
• Wireless Parameter
• Max. Transmission Rate of Air Interface
  ≤ 1167 Mbps
  2.4 GHz: 300 Mbps
  5 GHz: 867 Mbps
• Wireless StandardIEEE 802.11/a/n/ac wave 2 @5GHz, IEEE 802.11b/g/n @2.4GHz
• Working Frequency Band2.4 GHz，5 GHz
• Transmitting Power16dBm @ 2.4G-mcs7、17dBm @ 5G-mcs9
• Wireless Performance2*2 MIMO supported
• Receiving Sensitivity
  -58 ± 2 dB@AC80 -MCS9
  -84 ± 2 dB@AC80 -MCS0
• Antenna2 high gain antennas
• Network TypeLTE CAT.4
• Mobile StandardsFDD LTE, TDD-LTE,WCDMA
• Mobile Bands4G FDD LTE: B1/B3/B7/B8/B20/B28AB,4G TDD-LTE: B38/B40/B41,3G WCDMA: B1/B8
• 4G SpeedDL: 150 Mbps, Upload: 50 Mbps
• Hardware Parameter

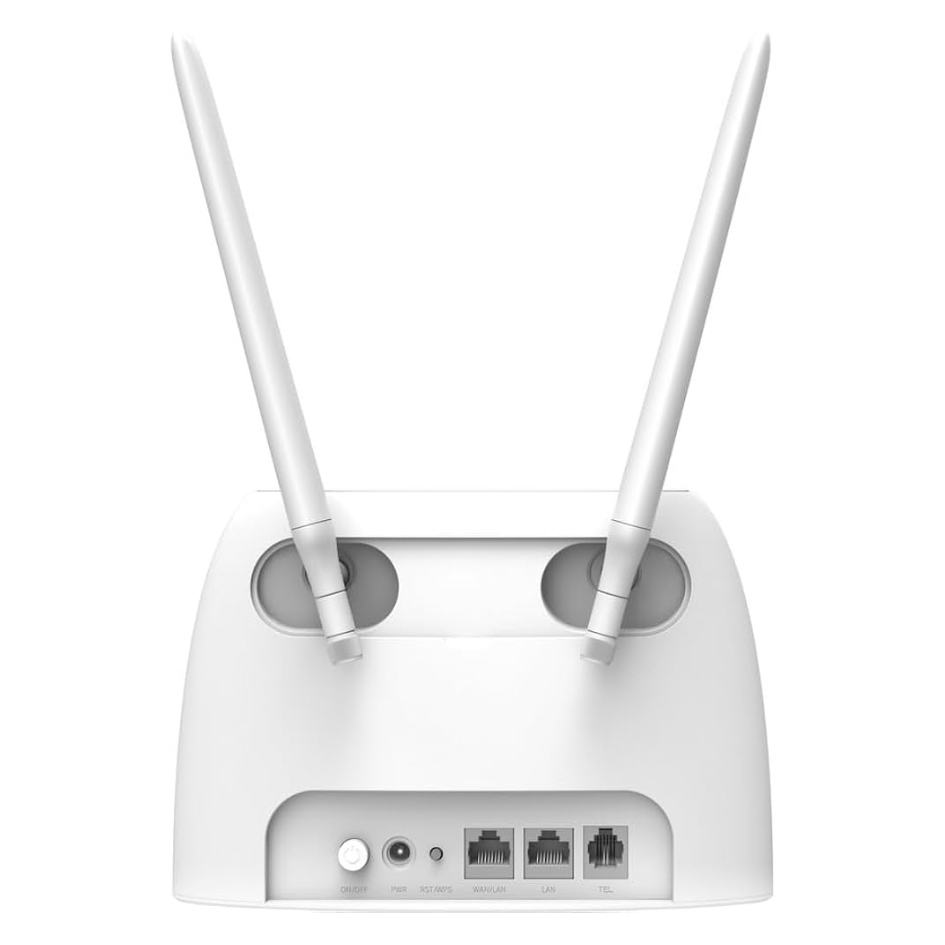

• Network Interface2 × RJ45, 10/100 Mbps auto-negotiation

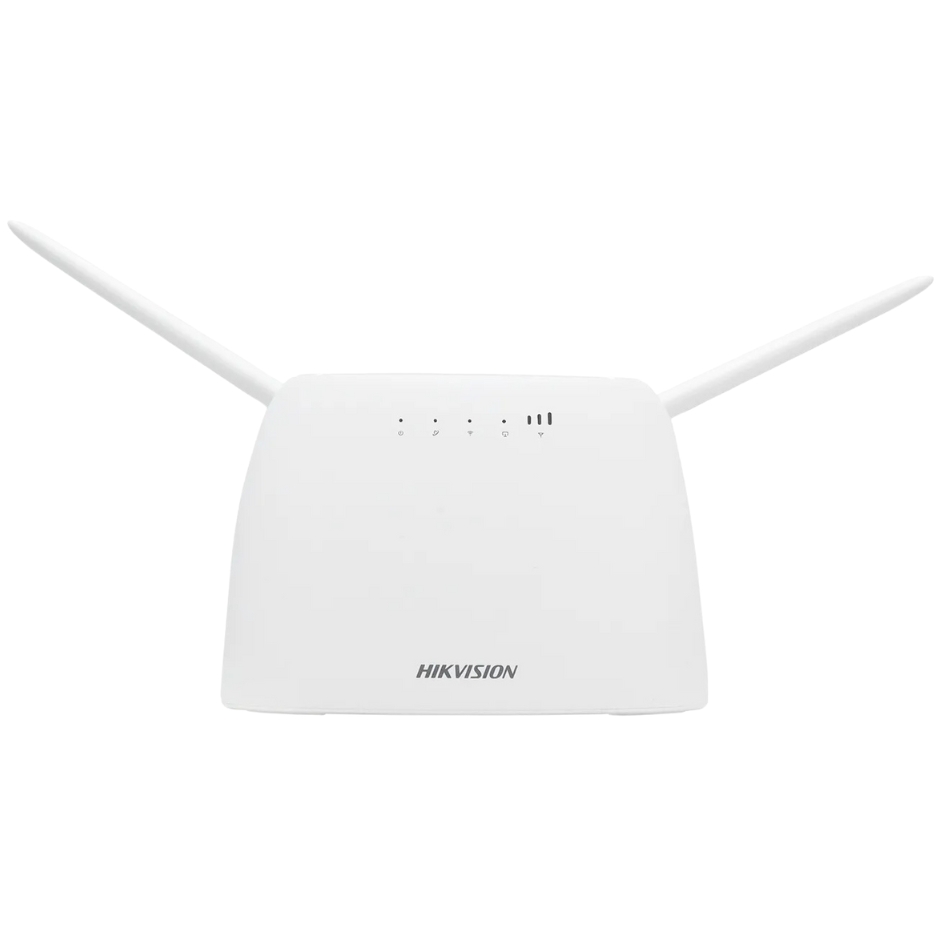

• LED Indicatorpower LED*1、internet LED*1、WiFi LED*1、RJ45 LED*1、LTE LED*3
• ResetReset button*1
• Power Supply Method9 VDC, 1 A power adapter power supply
• Power Specifications9 VDC, 1 A
• Software Function
• Application Function
  3G/4G Route Mode, Wireless Router Mode, and AP Mode supported
  DHCP Server supported
  Guest Network Configuration supported
  Signal Adjustment supported
  WiFi Schedule supported
• Security ModeWPA-PSK, WPA2-PSK, WPA and WPA2 supported
• Security MechanismHide SSID
• Management MethodWeb
• UpgradeWeb
• System LogSystem log
